Z axis mount bolt hole spacings?

Machines (Original/PRO)
1

anyone know the spacing on the a z axis mount bolt holes.
crappy pic but this is what im looking for

[Album] Z axis
2

I’m looking for the same info. My plan is to have a custom made mount for a Bosch 1618 EVS motor. (Assuming the Z axis and the Nema motor can handle it)

3

I’m also trying to make a custom mount or see if a 3rd party mount fits on the stock spacing. i emailed @OnefinityCNC about it but they never replied, they’re probably busy but who knows.

4

20200922_231216_HDR~2

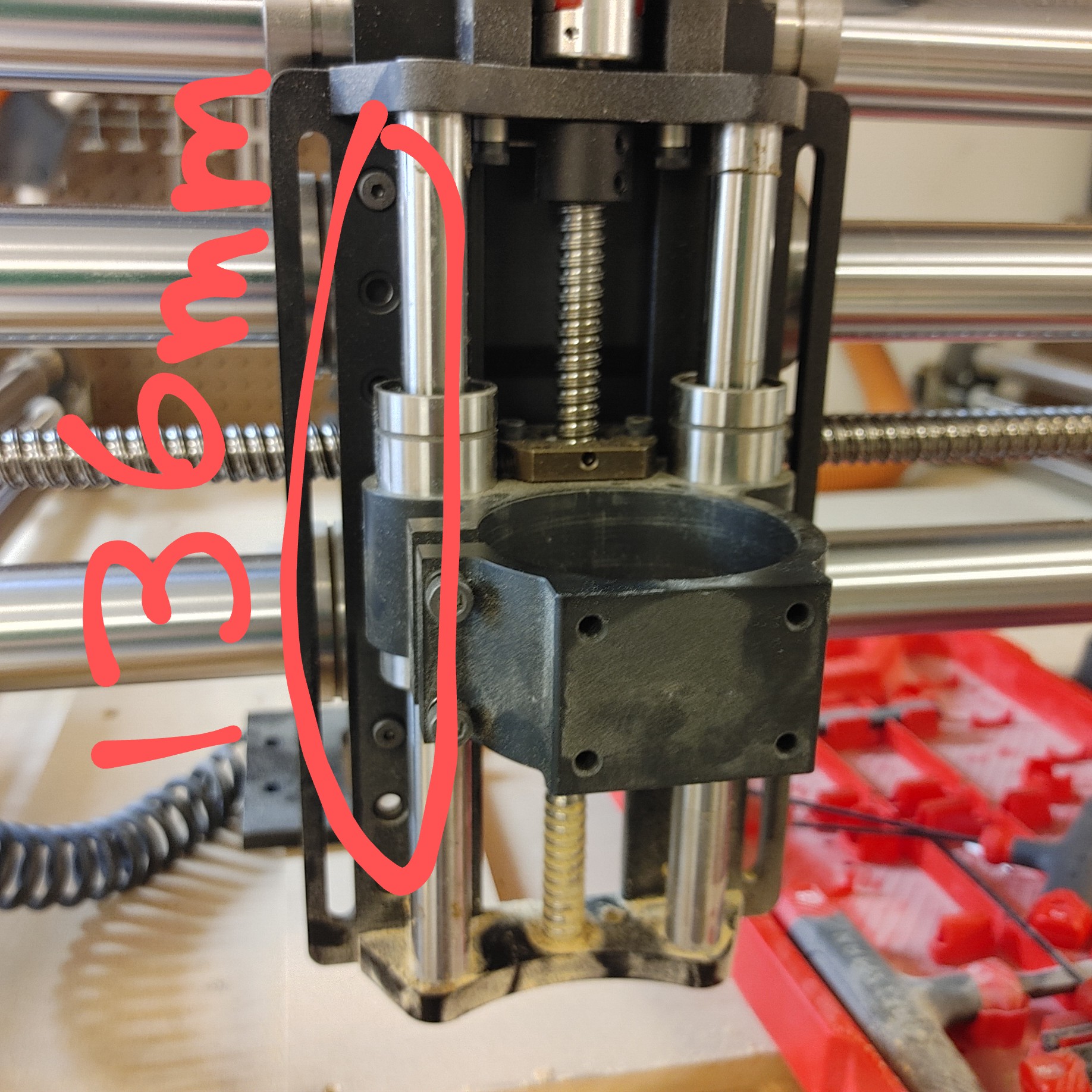

20200922_231216_HDR~21836×1836 778 KB
20200922_231210_HDR~2

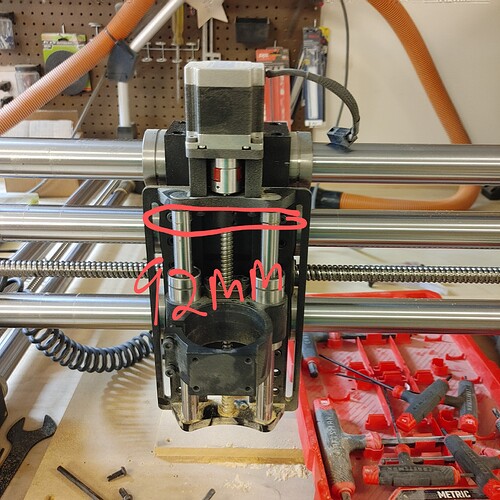

20200922_231210_HDR~21836×1836 642 KB

Is this the info your looking for?

2 Likes
5

these measurements are through the center of the bolt heads?

6

Yes they are, as close as I could get them.

7

thanks, its helpful. going to either buy a different z slider or make one.

8

Actually I’m looking for the spacing of the 4 bolts holding the motor Mount.

Thanks
